Information Hierarchy

The information in a BIS repository is arranged in a hierarchy that is governed by rules. Some of the rules are explicitly defined by the schemas, and other rules require the applications that are creating data to follow standards.

The hierarchies in BIS repositories are intended to facilitate both human and software comprehension of the data.

Hierarchy Constructs

There are several mechanisms available in BIS that domain authors can take advantage of in order to organize elements into hierarchies:

  • The Subject hierarchy organizes Models.
  • A Model can contain Elements.
  • An Element can be sub-modeled by a Model.
  • An Element can own child Elements.
  • An Element can be spatially organized by a Spatial Organizer into a hierarchy according to a specific discipline.
  • A Physical System can group member Elements as part of a hierarchical organization by sub-systems, according to a specific discipline.
  • The provenance of an Element can be traced back to an External Source, whose organization may be hierarchical.

Each of these mechanism is intended to be used in specific circumstances which are explained in this chapter.

The Subject Hierarchy Organizes Models

The RepositoryModel contains a hierarchy of Subject Elements organized into a parent-child hierarchy. All Models (other than the RepositoryModel itself) are organized under these Subjects (via InformationPartition)

Model Contains Elements

A Model is a container for Elements. Models are a way to subdivide and organize the overall repository. Each Element is contained by exactly 1 Model as defined by the ModelContainsElements relationship.

Model Models Element

A Model is more detail about an Element from a higher level in the information hierarchy. A Model is about exactly 1 Element as defined by the ModelModelsElement relationship. From the Model's perspective, this higher-level Element is known as the modeled element. From the Element's perspective, the lower-level Model is knows as the SubModel. The SubModel term is just a way to refer to a relative position in the information hierarchy. There is no special class for a SubModel, only the standard Model subclasses.

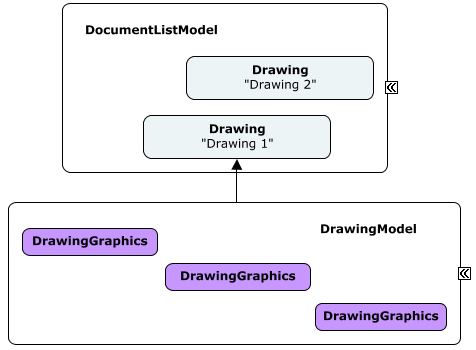

For example, a DrawingModel sub-models a Drawing Element and contains the DrawingGraphic Elements that are the details of the overall drawing. The following instance-diagram depicts such situation. See Instance-diagram Conventions for details about the conventions used.

  DrawingModel Break-down

Element Owns Child Elements

An Element can own child Elements. This is useful for modeling assembly relationships or for modeling cases where one Element exclusively controls the lifetime of other Elements. An Element can have 0 or 1 parent Elements as defined by the ElementOwnsChildElements relationship. An Element without a parent is considered a top-level Element. An Element with a parent is considered a child Element. These hierarchies can go N levels deep, which means that an Element can be both a parent and a child. A parent Element and all its children are required to be contained in the same model.

Element Organized by Spatial Organizer

A Spatial Organizer, typically a subclass of spcomp:SpatialStructureElement or spcomp:Zone, can organize (i.e. either hold or reference) Spatial Elements and aggregate other Spatial Structure elements.

These concepts are part of the rules and patterns introduced by the SpatialComposition schema. They aim to enable the modeling of the Spatial Structure of infrastructure.

The resulting hierarchy can define as many levels as needed. These Spatial Composition hierarchies can co-exist with the other organization mechanisms listed above.

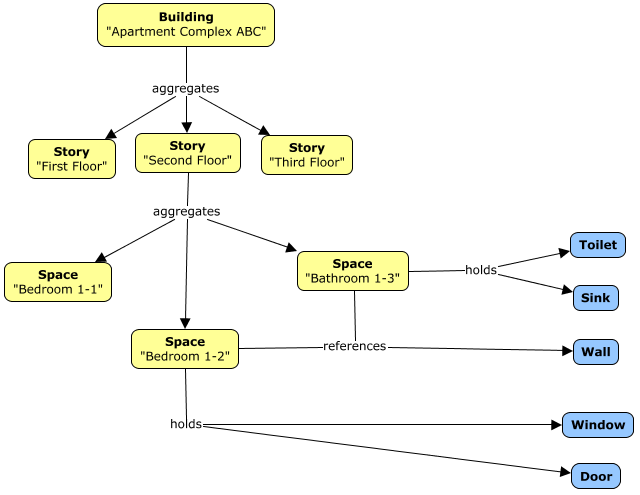

For example, a Building is modeled as a subclass of spcomp:SpatialStructureElement, which spatially aggregates other Spatial Organizers such as Stories and Spaces. Physical elements such as Walls, Columns and Doors are associated to (held or referenced by depending on the case) those concepts from the Building decomposition. The following instance-diagram depicts such situation. See Instance-diagram Conventions for details about the conventions used.

Building decomposition

For more details about Spatial Composition in BIS, please refer to the Spatial Composition topic later in this chapter.

Physical System Groups Members

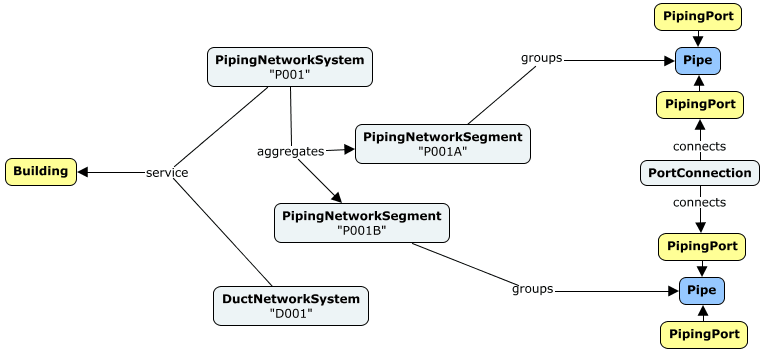

A Physical System can group member-Elements which, together, provide a specific function. Physical Systems can be organized in a hierarchical manner by using the bis:PhysicalSystemAggregatesSubSystems relationship. Physical System hierarchies can co-exist with the other organization mechanisms listed above.

Physical Systems

For more details about Physical Systems in BIS, please refer to the Modeling Systems topic later in this chapter.

Element Is From Source

An Element's provenance, captured by bis:ExternalSourceAspects attached to it, can refer to the External Source it came from. External Sources can be organized in a hierarchical manner, reflecting how they are laid out in the external repository. These External Source hierarchies can co-exist with the other organization mechanisms listed above.

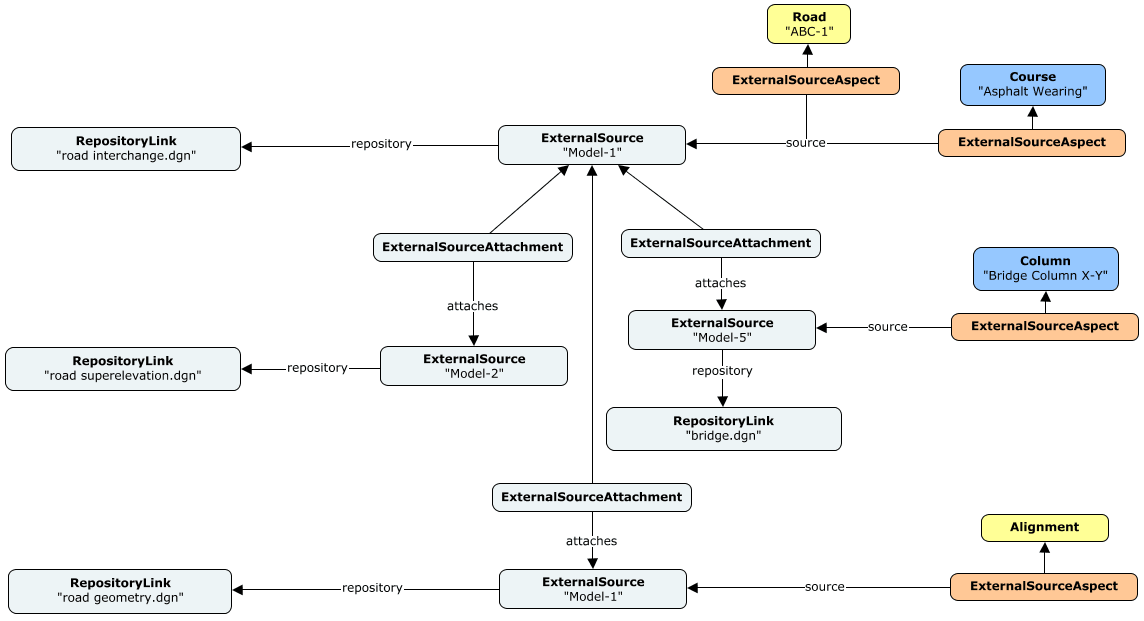

For example, an iModel Connector synchronizes data from a Road dataset containing 4 dgn files. The model-attachments among those dgn files are represented in the iModel by a hierarchy composed of ExternalSource instances, which act as the sources for the elements in the iModel that were synchronized from the external dgn files. The following instance-diagram depicts such situation. See Instance-diagram Conventions for details about the conventions used.

External Sources Example

For more details about External Sources in BIS, please refer to Provenance in BIS.

Top of the World

The top of the information hierarchy is strictly controlled and is very similar in all BIS repositories. Its contents are explained in Top of the World

Typical Repository Organization

Two examples of repository organizations are described below. It should be noted that a single BIS repository may have multiple uses. When that occurs each use (often corresponding to an application) adds its hierarchy on a corresponding Editing Channel within the BIS repository. The resulting total hierarchy for the single BIS repository is then the union of the uses' hierarchies.

Example Information Hierarchy

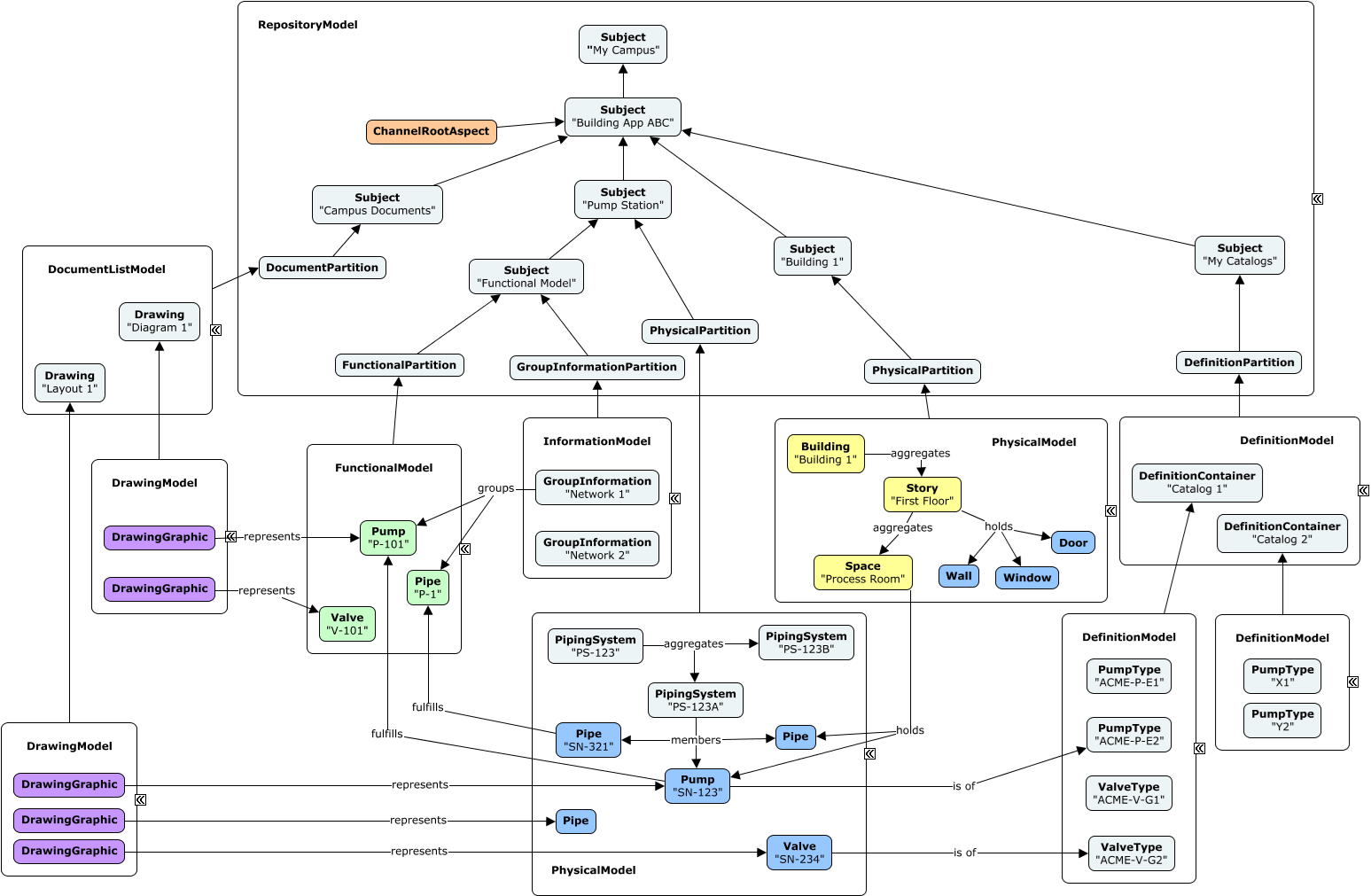

The following instance-diagram depicts the information hierarchy for an hypothetical campus. The data is assumed to have been written by a single application, thus, it is organized into a one Editing Channel. It shows the organization of data in two main modeling perspectives: Physical and Functional, as well as catalog-data in Definition models and associated Drawings under a Document perspective. See Instance-diagram Conventions for details about the conventions used.

  Information Hierarchy

iModel Connector Repository Organization

iModel Connectors transform data in an external format into an iModel. As part of that job, they need to organize the resulting data in a way that is comprehensible by both humans and software.

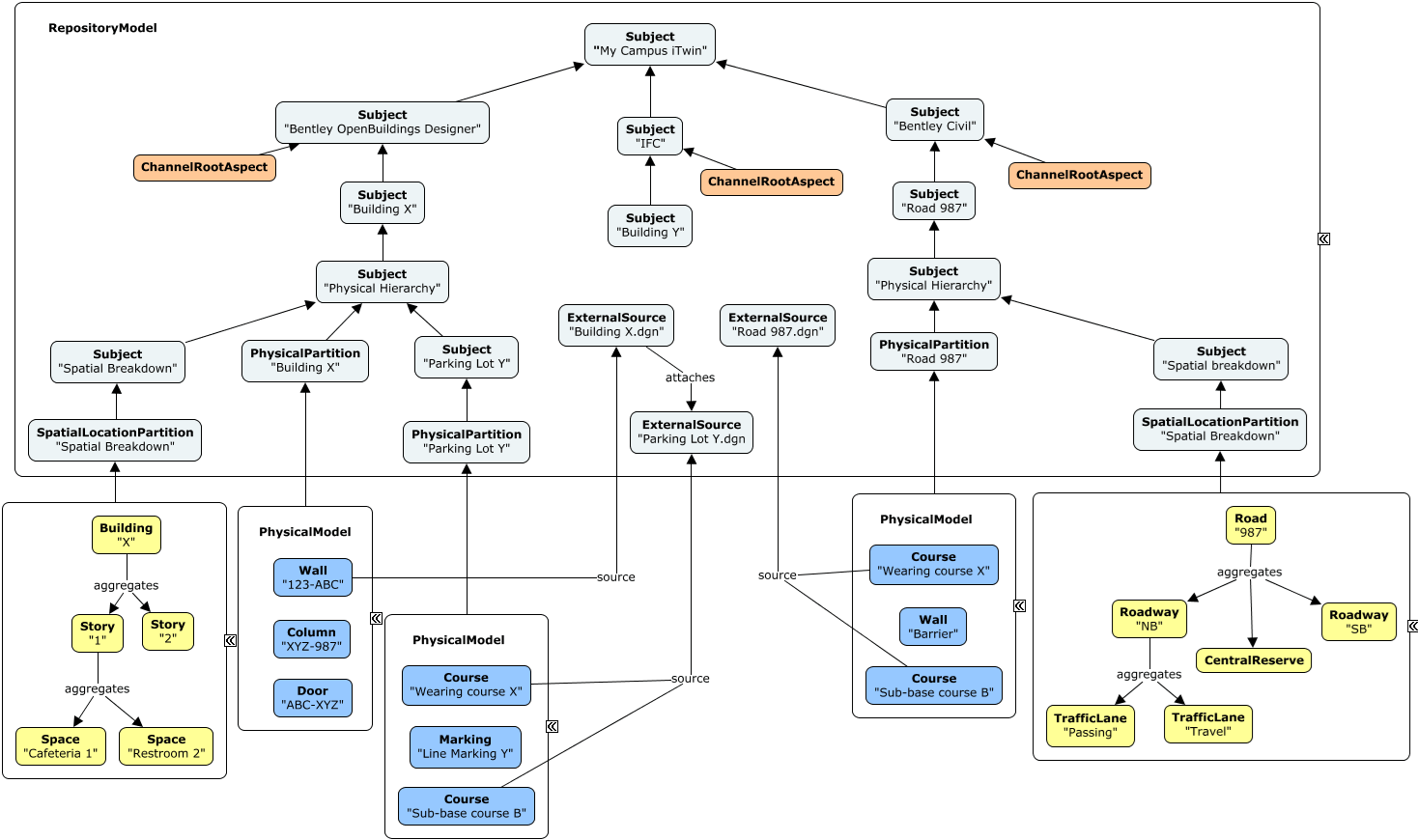

The following instance diagram depicts the organization of information in one iModel targeted by three iModel Connectors: IFC, OpenBuilding Designer and Bentley Civil, which synchronized data from three different datasets, two .dgn-based and one .ifc. The last two are shown with more detail, including their parallel Model, ExternalSource and SpatialComposition hierarchies. As a result, the resulting hierarchy of the BIS repository is organized into three Editing Channels.

  iModel Connector Repository Organization

Since iModel Connectors run headless without user-input, they need to organize data they write into iModels based on their understanding about it. In the example above, data synchronized by each iModel Connector is stored under a specific branch of the Subject hierarchy. Each iModel Connector lays out the next levels according to the structure and discoverable semantics about the data on the source. In the case of dgn files, both the OpenBuilding Designer and Bentley Civil iModel Connectors create child Subjects for every referenced dgn & model on the external dataset, mirroring the division of labor among teams and disciplines that drive the organization of data in those external products.

See iModel Connectors for more details.
