Expandable

The ExpandableList React component is a container for one or more ExpandableBlock components. The ExpandableBlock React component is a container that shows and hides child content.

Examples

SampleExpandableBlock

The following React function component maintains the expanded state for an ExpandableBlock. It will be used in the examples below.

import * as React from "react";
import { ExpandableBlock, ExpandableBlockProps } from "@bentley/ui-core";

/** Sample component using ExpandableBlock with an expanded state  */
export const SampleExpandableBlock: React.FC<ExpandableBlockProps> = (props: ExpandableBlockProps) => {
  const [expanded, setExpanded] = React.useState(true);

  const _handleClick = (event: React.MouseEvent<HTMLDivElement, MouseEvent>): void => {
    setExpanded(!expanded);

    props.onClick && props.onClick(event);
  };

  return (
    <ExpandableBlock {...props} isExpanded={expanded} onClick={_handleClick} />
  );
};

Single ExpandableBlock

This example shows an ExpandableList component with a single ExpandableBlock that starts in the expanded state. The SampleExpandableBlock maintains the expanded state and allows the block to hide and show.

<ExpandableList>
  <SampleExpandableBlock title="Test" isExpanded={true} onClick={() => { }}>
    Hello World!
  </SampleExpandableBlock>
</ExpandableList>

Multiple ExpandableBlocks

This example shows an ExpandableList component with two ExpandableBlocks. The singleExpandOnly prop for ExpandableList indicates whether to allow only one expanded block, and that prop is used in this example.

<ExpandableList singleExpandOnly={true} defaultActiveBlock={0}>
  <ExpandableBlock title="Test1" isExpanded={false} onClick={() => { }}>
    Hello World 1
  </ExpandableBlock>
  <ExpandableBlock title="Test2" isExpanded={false} onClick={() => { }}>
    Hello World 2
  </ExpandableBlock>
</ExpandableList>

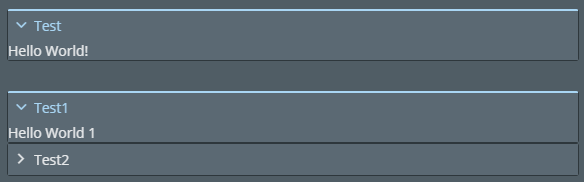

Dark Theme

API Reference

• Expandable
