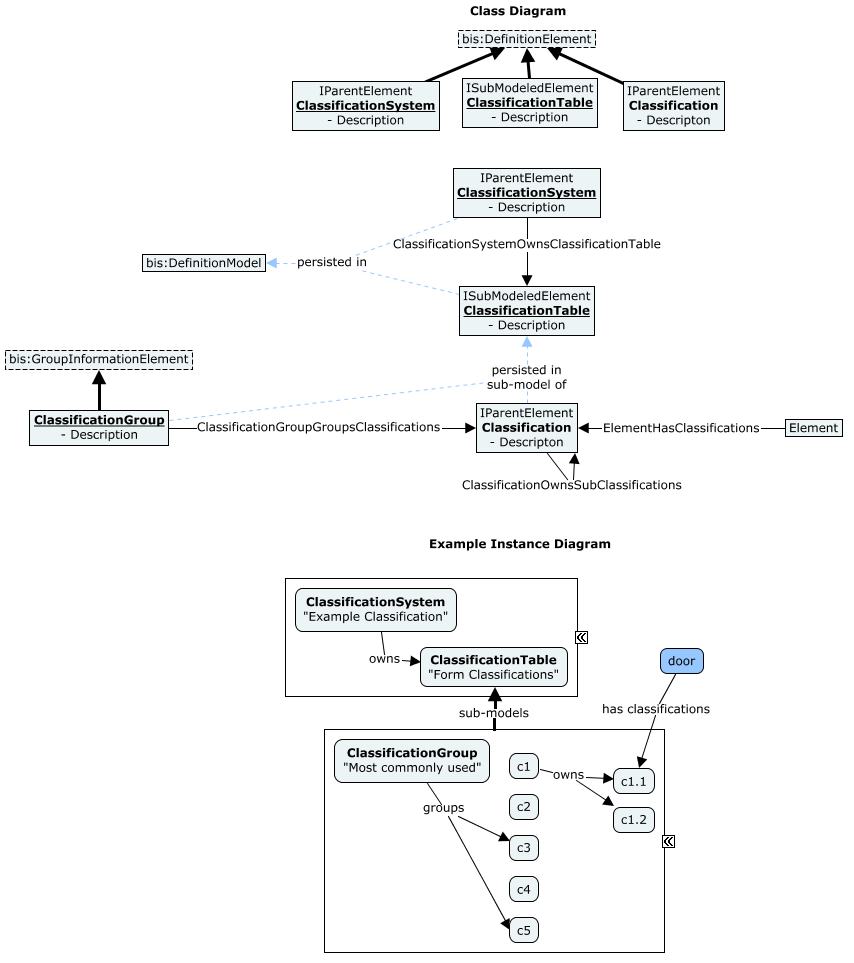

Base Infrastructure Schema > domains > Classification Systems ECSchema ClassificationSystems Schema Alias: clsf Version: 1.0.2 A schema for classifying elements This schema contains classes for modeling classification systems, which are organized sets of definitions used for classifying or categorizing real-world Objects. In BIS, a ClassificationSystem consists of one or more ClassificationTables. Each ClassificationTable is an ISubModeledElement whose sub-model holds Classifications. Within the sub-model, the Classifications can be arranged in a hierarchy using the ClassificationOwnsSubClassifications parent-child relationship and grouped using ClassificationGroup and ClassificationGroupGroupsClassifications. Table of contents Entity Classes Classification ClassificationGroup ClassificationSystem ClassificationTable Relationship Classes ClassificationGroupGroupsClassifications ClassificationOwnsSubClassifications ClassificationSystemOwnsClassificationTable ClassificationSystemOwnsClassifications ElementHasClassifications Entity Classes Classification (Classification) EntityClass An element that represents a single entry in a classification system Base Class: BisCore:DefinitionElement Properties Name Description Type Extended Type Description Description for this Classification string Inherited properties Name Description Type Extended Type Model The bis:Model that contains this bis:Element. navigation LastMod The last modified time of the bis:Element. This is maintained by the core framework and should not be set directly by applications. dateTime CodeSpec The CodeSpec property identifies the bis:CodeSpec used to generate and validate the code for this bis:Element. The combination of CodeSpec, CodeScope, and CodeValue properties must be unique for each bis:Element instance. navigation CodeScope The CodeScope property identifies the bis:Element that provides the uniqueness scope for the code value. The combination of CodeSpec, CodeScope, and CodeValue properties must be unique for each bis:Element instance. navigation CodeValue The CodeValue property stores the formal name (business key) for a bis:Element. The combination of CodeSpec, CodeScope, and CodeValue properties must be unique for each bis:Element instance. string UserLabel An optional friendly name given by the user (as opposed to the formal name stored in the CodeValue property). string Parent The parent bis:Element that owns this bis:Element. navigation FederationGuid The GUID used to federate this bis:Element across repositories. binary BeGuid JsonProperties A string property that users and/or applications can use to persist ad hoc JSON values. string Json IsPrivate If true, this bis:DefinitionElement should not be displayed in the GUI. boolean ClassificationGroup (Classification group) EntityClass ClassificationGroup groups classifications Base Class: BisCore:GroupInformationElement Properties Name Description Type Extended Type Description Description for this ClassificationGroup string Inherited properties Name Description Type Extended Type Model The bis:Model that contains this bis:Element. navigation LastMod The last modified time of the bis:Element. This is maintained by the core framework and should not be set directly by applications. dateTime CodeSpec The CodeSpec property identifies the bis:CodeSpec used to generate and validate the code for this bis:Element. The combination of CodeSpec, CodeScope, and CodeValue properties must be unique for each bis:Element instance. navigation CodeScope The CodeScope property identifies the bis:Element that provides the uniqueness scope for the code value. The combination of CodeSpec, CodeScope, and CodeValue properties must be unique for each bis:Element instance. navigation CodeValue The CodeValue property stores the formal name (business key) for a bis:Element. The combination of CodeSpec, CodeScope, and CodeValue properties must be unique for each bis:Element instance. string UserLabel An optional friendly name given by the user (as opposed to the formal name stored in the CodeValue property). string Parent The parent bis:Element that owns this bis:Element. navigation FederationGuid The GUID used to federate this bis:Element across repositories. binary BeGuid JsonProperties A string property that users and/or applications can use to persist ad hoc JSON values. string Json ClassificationSystem (Classification System) EntityClass An element used to represent a classification system Base Class: BisCore:DefinitionElement Properties Name Description Type Extended Type Source Source (or publisher) for this classification string Edition The edition or version of the classification system from which the classification notation is derived. string Location Resource identifier or locator, provided as URI, URN or URL, of the classification. string Description Description for this ClassificationSystem string Inherited properties Name Description Type Extended Type Model The bis:Model that contains this bis:Element. navigation LastMod The last modified time of the bis:Element. This is maintained by the core framework and should not be set directly by applications. dateTime CodeSpec The CodeSpec property identifies the bis:CodeSpec used to generate and validate the code for this bis:Element. The combination of CodeSpec, CodeScope, and CodeValue properties must be unique for each bis:Element instance. navigation CodeScope The CodeScope property identifies the bis:Element that provides the uniqueness scope for the code value. The combination of CodeSpec, CodeScope, and CodeValue properties must be unique for each bis:Element instance. navigation CodeValue The CodeValue property stores the formal name (business key) for a bis:Element. The combination of CodeSpec, CodeScope, and CodeValue properties must be unique for each bis:Element instance. string UserLabel An optional friendly name given by the user (as opposed to the formal name stored in the CodeValue property). string Parent The parent bis:Element that owns this bis:Element. navigation FederationGuid The GUID used to federate this bis:Element across repositories. binary BeGuid JsonProperties A string property that users and/or applications can use to persist ad hoc JSON values. string Json IsPrivate If true, this bis:DefinitionElement should not be displayed in the GUI. boolean ClassificationTable (Classification Table) EntityClass An element used to represent a table in a classification system Base Class: BisCore:DefinitionElement Properties Name Description Type Extended Type Description Description for this ClassificationTable string Inherited properties Name Description Type Extended Type Model The bis:Model that contains this bis:Element. navigation LastMod The last modified time of the bis:Element. This is maintained by the core framework and should not be set directly by applications. dateTime CodeSpec The CodeSpec property identifies the bis:CodeSpec used to generate and validate the code for this bis:Element. The combination of CodeSpec, CodeScope, and CodeValue properties must be unique for each bis:Element instance. navigation CodeScope The CodeScope property identifies the bis:Element that provides the uniqueness scope for the code value. The combination of CodeSpec, CodeScope, and CodeValue properties must be unique for each bis:Element instance. navigation CodeValue The CodeValue property stores the formal name (business key) for a bis:Element. The combination of CodeSpec, CodeScope, and CodeValue properties must be unique for each bis:Element instance. string UserLabel An optional friendly name given by the user (as opposed to the formal name stored in the CodeValue property). string Parent The parent bis:Element that owns this bis:Element. navigation FederationGuid The GUID used to federate this bis:Element across repositories. binary BeGuid JsonProperties A string property that users and/or applications can use to persist ad hoc JSON values. string Json IsPrivate If true, this bis:DefinitionElement should not be displayed in the GUI. boolean Relationship Classes ClassificationGroupGroupsClassifications RelationshipClass Maps Classification to its group Base Class: BisCore:ElementGroupsMembers Strength: Referencing Strength Direction: Forward Source Is Polymorphic: true Role Label: groups Multiplicity: (0..*) Constraint Classes: ClassificationGroup Target Is Polymorphic: true Role Label: is grouped in Multiplicity: (0..*) Constraint Classes: Classification ClassificationOwnsSubClassifications RelationshipClass A relationship used to indicate that one classification specializes another classification Base Class: BisCore:ElementOwnsChildElements Strength: Embedding Strength Direction: Forward Source Is Polymorphic: true Role Label: owns Multiplicity: (0..1) Constraint Classes: Classification Target Is Polymorphic: true Role Label: is owned by Multiplicity: (0..*) Constraint Classes: Classification ClassificationSystemOwnsClassificationTable RelationshipClass Maps classification systems to their tables Base Class: BisCore:ElementOwnsChildElements Strength: Embedding Strength Direction: Forward Source Is Polymorphic: true Role Label: owns Multiplicity: (0..1) Constraint Classes: ClassificationSystem Target Is Polymorphic: true Role Label: is owned by Multiplicity: (0..*) Constraint Classes: ClassificationTable ClassificationSystemOwnsClassifications RelationshipClass Deprecated Decided that even simple ClassificationSystems should use the ClassificationTable layer to maintain one consistent way of querying for related Classifications. DEPRECATED: Identifies classifications directly owned by a classification system Base Class: BisCore:ElementOwnsChildElements Strength: Embedding Strength Direction: Forward Source Is Polymorphic: true Role Label: owns Multiplicity: (0..1) Constraint Classes: ClassificationSystem Target Is Polymorphic: true Role Label: is owned by Multiplicity: (0..*) Constraint Classes: Classification ElementHasClassifications RelationshipClass Assigns Classifications to Elements Base Class: BisCore:ElementRefersToElements Strength: Referencing Strength Direction: Forward Source Is Polymorphic: true Role Label: has classification Multiplicity: (0..*) Constraint Classes: Element Target Is Polymorphic: true Role Label: classifies Multiplicity: (0..*) Constraint Classes: Classification Last Updated: 02 February, 2022
