Related instance specification

TypeScript type: RelatedInstanceSpecification.

Related instance specification is used in content and hierarchy specifications to "join" the primary instance with its related instance and allow using the related instance for:

Attributes

Name Required? Type Default
relationshipPath Yes, if targetInstances not specified RelationshipPathSpecification
targetInstances Yes, if relationshipPath not specified { class: SingleSchemaClassSpecification; instanceIds: Id64String[] }
alias Yes string
isRequired No boolean false

Attribute: relationshipPath

Specifies a chain of relationship path specifications that forms a path from the primary instance to the related instances.

Type RelationshipPathSpecification
Is Required Yes, if targetInstances is not specified

Attribute: targetInstances

Specifies a target class and IDs of its ECInstances to relate to the primary instance.

This may be useful when you want to use information of a completely unrelated (or related by means other than an ECRelationship) ECInstance in instance filter, conditions or grouping.

Type { class: SingleSchemaClassSpecification; instanceIds: Id64String[] }
Is Required Yes, if relationshipPath is not specified

Attribute: alias

Specifies an an alias that given to the related instance. The alias can be used to reference the instance in instance filter and customization rules.

Note: The value must be unique per hierarchy specification. If there are multiple related instance specifications using the same alias, the library uses the first one and ignores the rest of them.

Type string
Is Required Yes

Attribute: isRequired

Specifies whether to omit the primary instance from the result if the other end of relationshipPath does not yield any related instances.

Type boolean
Is Required No
Default Value false

Examples

// This ruleset defines a specification that returns content for `bis.ViewDefinition` instances. In addition,
// there's a related instance specification, that describes a path to a related display style, and an
// instance filter that filters using its property.
const ruleset: Ruleset = {
  id: "example",
  rules: [
    {
      ruleType: "Content",
      specifications: [
        {
          specType: "ContentInstancesOfSpecificClasses",
          classes: { schemaName: "BisCore", classNames: ["ViewDefinition"], arePolymorphic: true },
          relatedInstances: [
            {
              relationshipPath: {
                relationship: { schemaName: "BisCore", className: "ViewDefinitionUsesDisplayStyle" },
                direction: "Forward",
              },
              alias: "display_style",
              isRequired: true,
            },
          ],
          instanceFilter: `display_style.CodeValue ~ "%View%"`,
        },
      ],
    },
  ],
};
Result

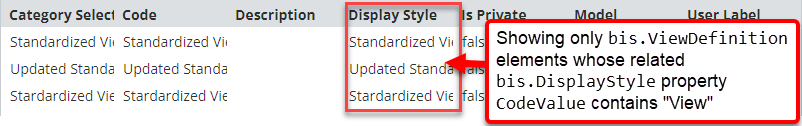

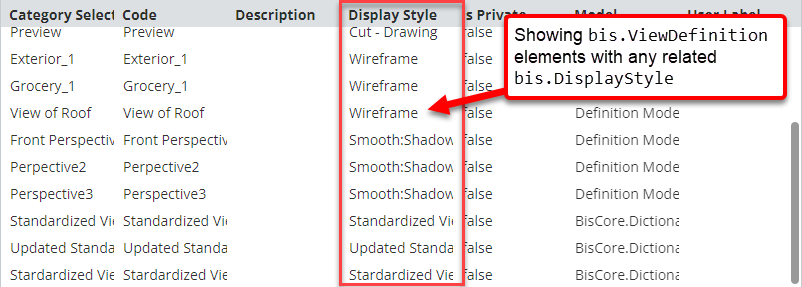

Without instance filter Example without instance filter
With instance filter Example with instance filter
// This ruleset defines a specification that returns content for `bis.ViewDefinition` instances. In addition,
// there's a related instance specification for the root Subject, and an instance filter that filters using its property.
const ruleset: Ruleset = {
  id: "example",
  rules: [
    {
      ruleType: "Content",
      specifications: [
        {
          specType: "ContentInstancesOfSpecificClasses",
          classes: { schemaName: "BisCore", classNames: ["ViewDefinition"], arePolymorphic: true },
          relatedInstances: [
            {
              targetInstances: {
                class: { schemaName: "BisCore", className: "Subject" },
                instanceIds: [IModel.rootSubjectId],
              },
              alias: "root_subject",
              isRequired: true,
            },
          ],
          instanceFilter: `root_subject.Description = this.Description`,
        },
      ],
    },
  ],
};
// This ruleset defines a specification that returns nodes for `meta.ECClassDef` instances. In addition,
// there's a related instance specification, that describes a path to the schema that the class belongs to.
// Finally, there's an extended data rule that sets full class name on each of the nodes. Full class name consists
// of schema and class names and the schema instance can be referenced through the alias specified in related
// instance specification.
const ruleset: Ruleset = {
  id: "example",
  rules: [
    {
      ruleType: "RootNodes",
      specifications: [
        {
          specType: "InstanceNodesOfSpecificClasses",
          classes: { schemaName: "ECDbMeta", classNames: ["ECClassDef"] },
          groupByClass: false,
          groupByLabel: false,
          relatedInstances: [
            {
              relationshipPath: {
                relationship: { schemaName: "ECDbMeta", className: "SchemaOwnsClasses" },
                direction: "Backward",
              },
              alias: "schema",
              isRequired: true,
            },
          ],
        },
      ],
      customizationRules: [
        {
          ruleType: "ExtendedData",
          items: {
            fullClassName: `schema.Name & "." & this.Name`,
          },
        },
      ],
    },
  ],
};
// Every node should have its full class name in extended data
const { total, items } = await Presentation.presentation.getNodesIterator({
  imodel,
  rulesetOrId: ruleset,
});

expect(total).to.eq(417);
for await (const node of items) {
  const fullClassName = node.extendedData!.fullClassName;
  const [schemaName, className] = fullClassName.split(".");
  expect(schemaName).to.not.be.empty;
  expect(className).to.not.be.empty;
}
// This ruleset defines a specification that returns nodes for `meta.ECClassDef` instances. In addition,
// there's a related instance specification, that describes a path to the schema that the class belongs to.
// Finally, there's a grouping rule that requests grouping on `ECSchemaDef.Name` property. Because
// the `ECClassDef` instances are "linked" to related `ECSchemaDef` instances, the grouping takes effect
// and classes get grouped by related schema names.
const ruleset: Ruleset = {
  id: "example",
  rules: [
    {
      ruleType: "RootNodes",
      specifications: [
        {
          specType: "InstanceNodesOfSpecificClasses",
          classes: { schemaName: "ECDbMeta", classNames: ["ECClassDef"] },
          groupByClass: false,
          groupByLabel: false,
          relatedInstances: [
            {
              relationshipPath: {
                relationship: { schemaName: "ECDbMeta", className: "SchemaOwnsClasses" },
                direction: "Backward",
              },
              alias: "schema",
              isRequired: true,
            },
          ],
        },
      ],
      customizationRules: [
        {
          ruleType: "Grouping",
          class: { schemaName: "ECDbMeta", className: "ECSchemaDef" },
          groups: [
            {
              specType: "Property",
              propertyName: "Name",
              createGroupForSingleItem: true,
            },
          ],
        },
      ],
    },
  ],
};
Result

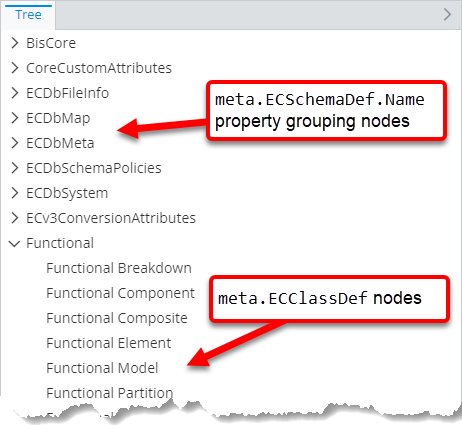

Without related instance specification Example without related instance specification
With related instance specification Example with related instance specification
