Provenance in BIS

Introduction

Provenance concerns the ability to trace an element in a BIS repository back to its native, external source. Several classes are available in the BisCore schema to help capturing provenance information for Elements in a BIS repository. They are particularly important for data-synchronization workflows, while detecting changes in an external source with respect to data stored in a BIS repository.

Core Concepts

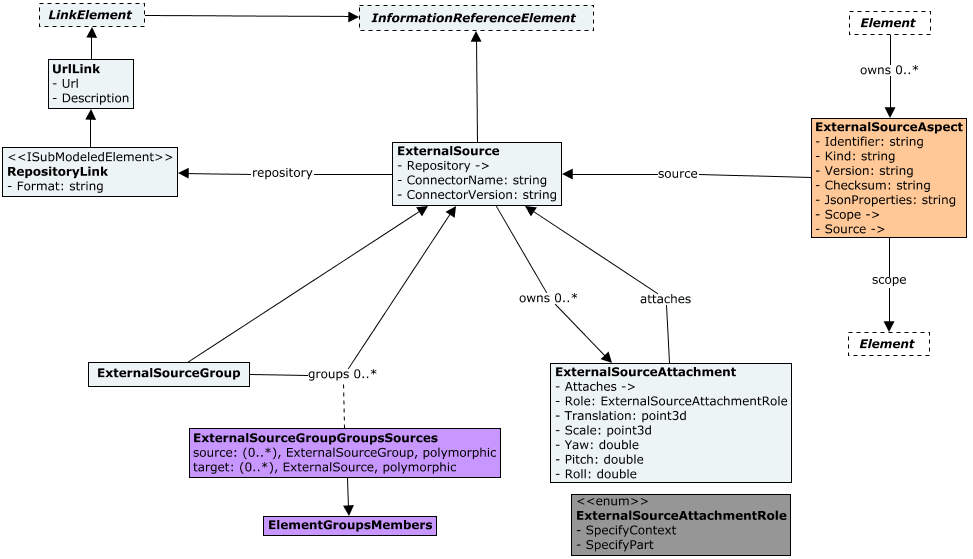

The following class diagrams depict the main classes from the BisCore schema involved in capturing provenance in BIS repositories. See Class-diagram Conventions for details about the conventions used.

RepositoryLink

A RepositoryLink represents a link to an external repository. External Repositories may be associated with Reality data as well as with data that is synchronized with elements in a BIS repository.

ExternalSource

An ExternalSource represents an Information Container within a repository. External repositories are referenced by RepositoryLink instances in a BIS repository.

Some external repositories do not have any data-container concept and therefore, their corresponding RepositoryLink instances will only be associated with one ExternalSource instance.

ExternalSourceAttachment

An ExternalSourceAttachment enables the representation of hierarchical Information Containers or acyclical dependency graphs that can be encountered in some external repositories.

ExternalSourceAttachment instances are owned by a ExternalSource at the higher level of the hierarchy via the ExternalSourceOwnsAttachments relationship.

An instance of ExternalSourceAttachment also captures any transformations needed - in the form of translation, scale or rotation - relative to the ExternalSource attaching it.

ExternalSourceAspect

An ExternalSourceAspect is an Element Aspect which is meant to capture the specific details with regards to provenance for its owning Element.

Provenance for a specific Element is captured in terms of:

• An Identifier in the source repository (required).
• A Kind of object within the source repository.
• A reference to another Element that represents a Scope in which the combination of Identifier and Kind is typically unique. This referenced Element is usually a RepositoryLink or an InformationPartitionElement. Note that uniqueness among these three attributes in light of a single Element is not enforced by BIS repositories.
• A reference to an ExternalSource from which the Element originated (required).
• An optional Version of the Element's data captured in the BIS repository.
• An optional Checksum - a cryptographic hash (any algorithm) - of the Element's data captured in the BIS repository.
• Optional JsonProperties in case additional provenance-related attributes need to be captured.

This provenance properties are very important during data-synchronization workflows. Each data-synchronizer needs to decide what values from entities in the external source to capture in the aforementioned properties. Chosen values need to be sufficient in order to match Elements in an iModel with entities in its external source and efficiently detect changes in the latter that need to be synchronized in the former. It is recommended that data-synchronizers assign not-null values to Identifier, Kind and Scope since they are targeted by aspect-finding-APIs in iTwin.js.

Note that an Element can own more than one ExternalSourceAspect if its provenance is associated to multiple source repositories or multiple entities in one external repository. Furthermore, ExternalSourceAspects with the same combination of Identifier, Kind and Scope are allowed on the same Element. In those cases, data-synchronizers can use the JsonProperties attribute of each ExternalSourceAspect in order to differenciate their provenance, if needed.

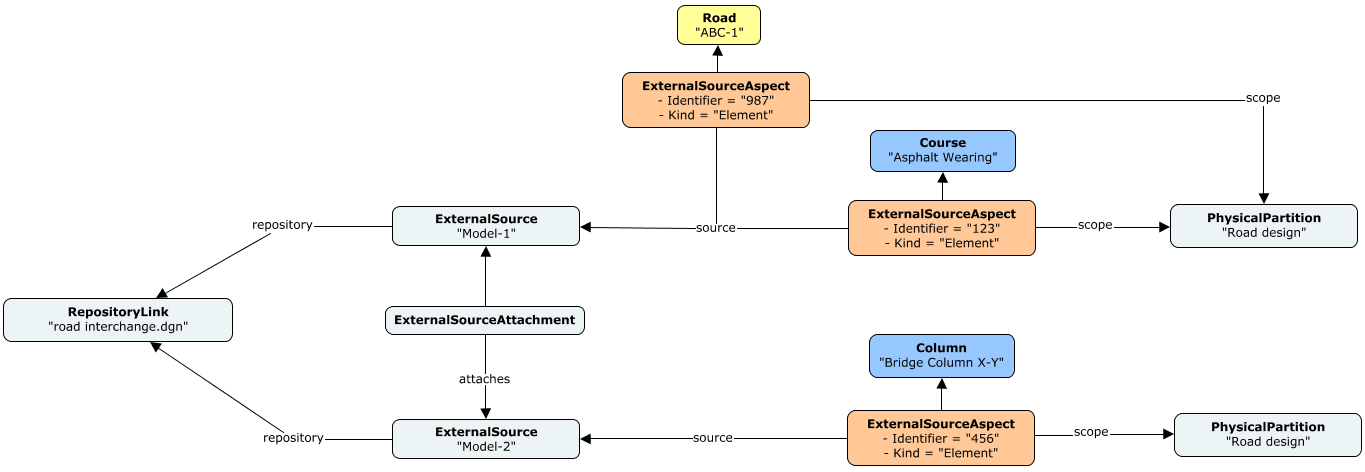

The following instance diagram shows an example of three elements synchronized from an external repository consisting of a single Dgn file containing two Dgn models. See Instance-diagram Conventions for details about the conventions used.

ExternalSourceGroup

An ExternalSourceGroup is an special case of ExternalSource intended to be used when there is a potential for duplicate elements across a set of external source files.

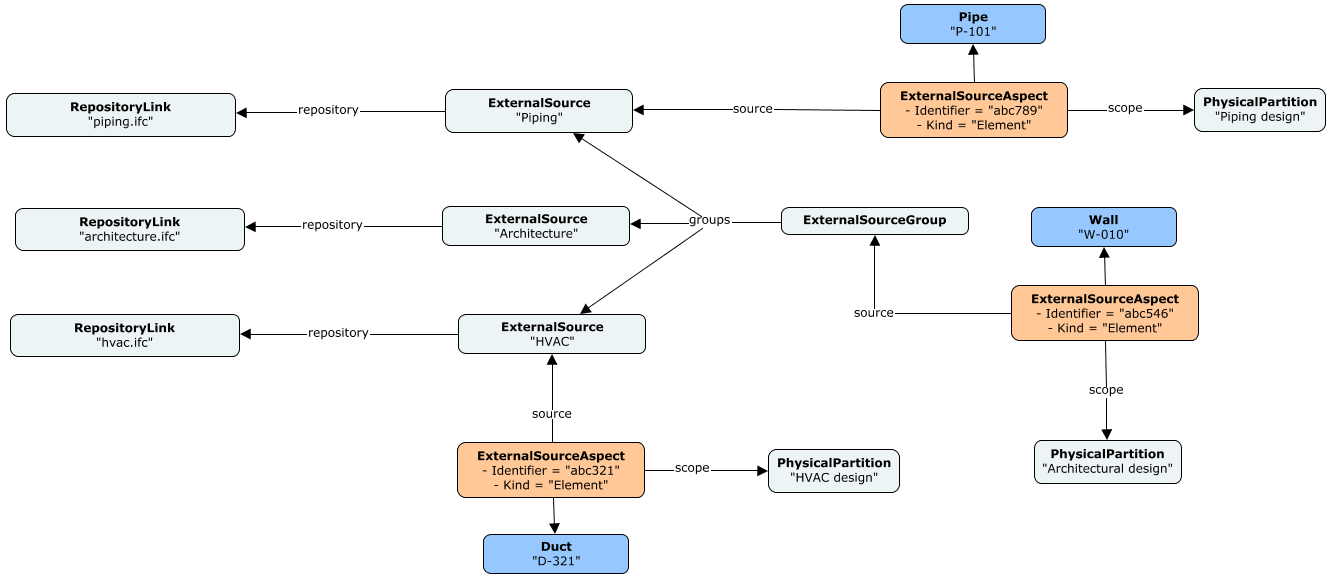

One real-world use case is the appearance of the same "Wall", with the same "unique" id, in more than one IFC file. This setup may have been done for the purpose of referencing the same "Wall" from three different IFC files focusing on piping, HVAC and architectural details respectively. This set of IFC files is then considered to be an ExternalSourceGroup in a BIS repository. The individual ExternalSource instances for each IFC file are then grouped via the ExternalSourceGroupGroupsSources relationship. The following instance diagram depics such an example. See Instance-diagram Conventions for details about the conventions used.

SynchronizationConfigLink

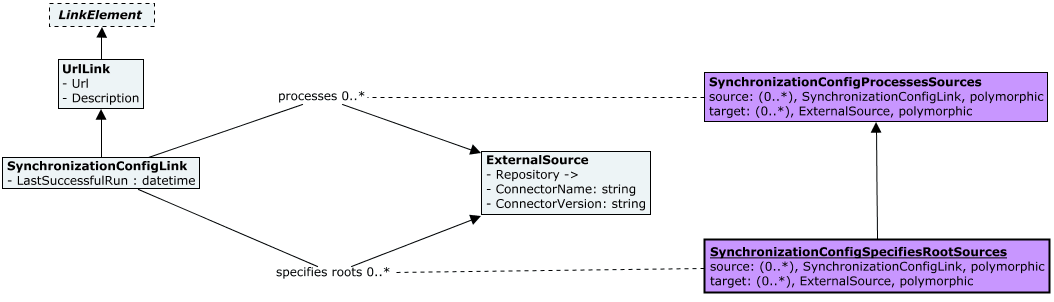

A SynchronizationConfigLink represents a link to the configuration of a synchronization job in a BIS repository. SynchronizationConfigLinks specify the associated ExternalSource instances that were processed during its execution via the SynchronizationConfigLinkProcessesSources relationship.

When the associated ExternalSource is the root of a synchronization job, which means that it is used to discover other referenced sources, the SynchronizationConfigLinkSpecifiesRootSources relationship shall be used instead.

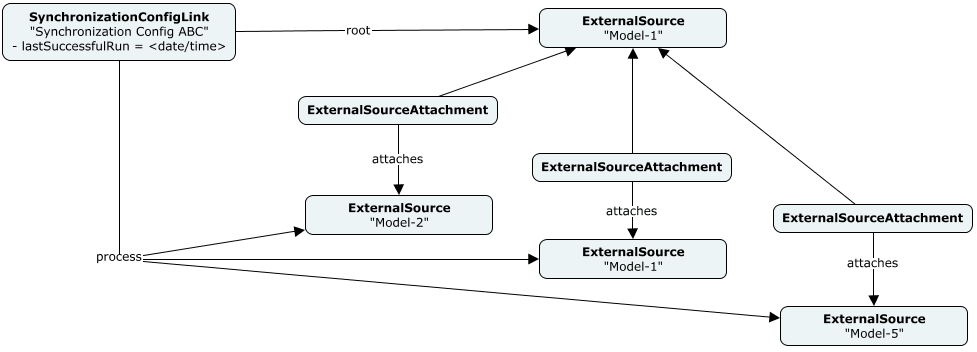

The following instance diagram shows an example of a hierarchy of ExternalSources, starting at an instance specified by a SynchronizationConfigLink. See Instance-diagram Conventions for details about the conventions used.
